King of Diamonds pinball rules and strategy

In King of Diamonds, plunge a lit 6 or 9 lane for 50 and a chance to reach K or Q. Go up top while the center roto-target shows cards you already have; shoot it when one of its three exposed cards fills a gap. Completing 2 through 9 lights a guide rollover for Special; completing 2 through Ace awards Special.

The goal

Use top lanes and K-Q targets for safer scoring, then pick off a needed card from the center roto-target. Avoid forcing the exposed Jack and 10 standups above the return lanes. Completing the full hand opens another set of 13 card Bonus values.

  1. Plunge a lit 6 or 9 top lane for 50 and a possible feed into K or Q.

  2. Read the three exposed cards on the center roto-target before choosing a shot.

  3. Shoot the roto-target when an exposed card is missing from your hand.

  4. If all three exposed cards are already collected, send the ball up top to rotate the target and pursue K or Q.

  5. When only a few cards remain, choose the lane or exposed target that completes 2 through 9 or the full 2-through-Ace hand.

Need to know
Lit top lane
Scores 50; the 6 and 9 lanes can feed the K or Q targets.
Center roto-target
Shows three shootable cards and rotates when any of the ten lanes is made.
Complete 2 through 9
Light one guide rollover for Special.

Machine setup

  • Confirm three- or five-ball play, Special conversion, the guide-rollover award, and whether the companion Diamond Jack add-a-ball rules are present instead of replay rules.
  • Test all ten roto-advance lanes, every visible roto-target position, all 13 card lamps, guide rollovers, K-Q-J-10 standups, both flippers, and the returns around the center target and rubber posts.
Sources and references
Contribute to this ruleset!

Your email is stored privately and only used to follow up about this report.

Edit on GitHub

Playbooks

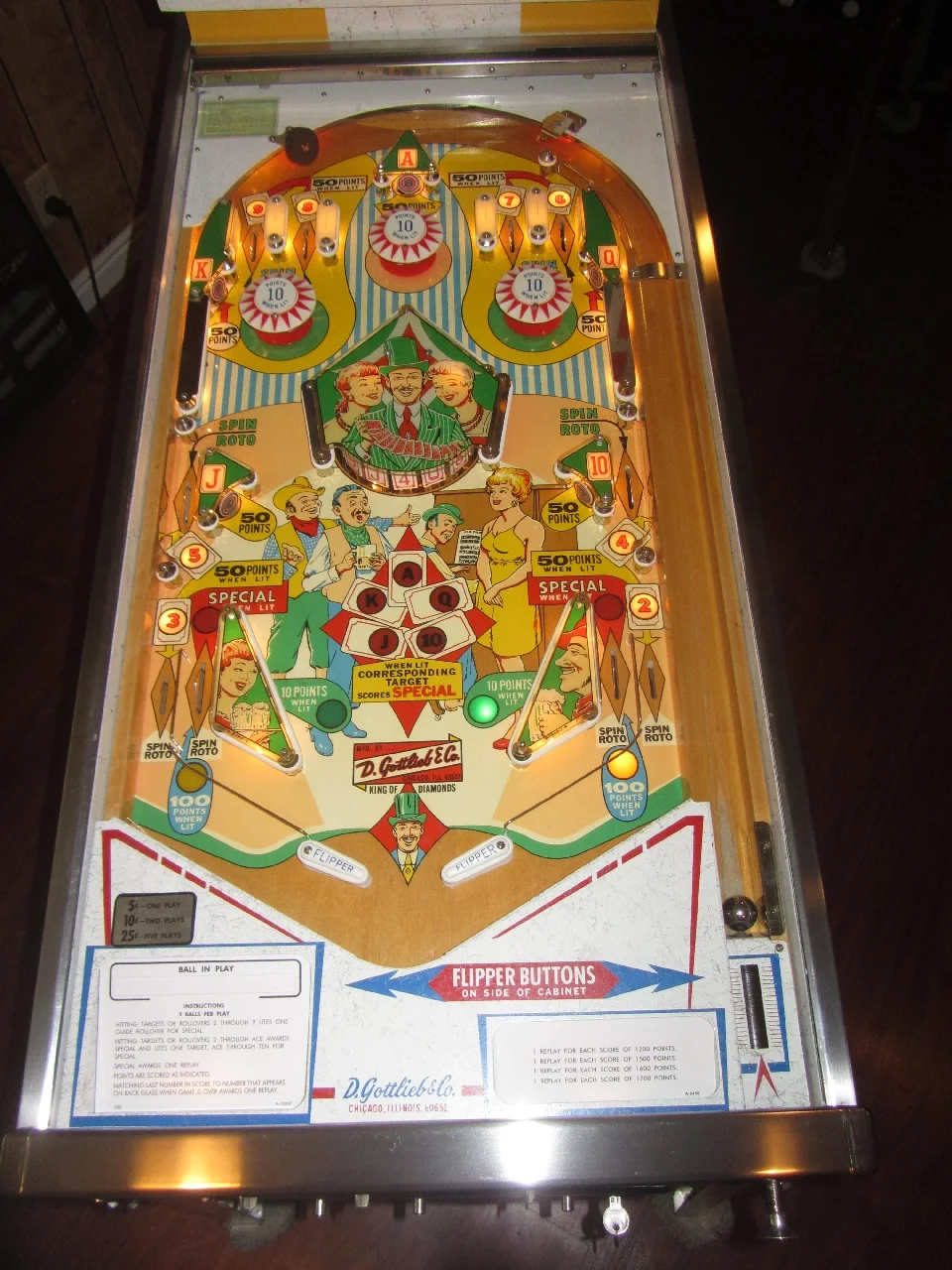

King of Diamonds playfield
